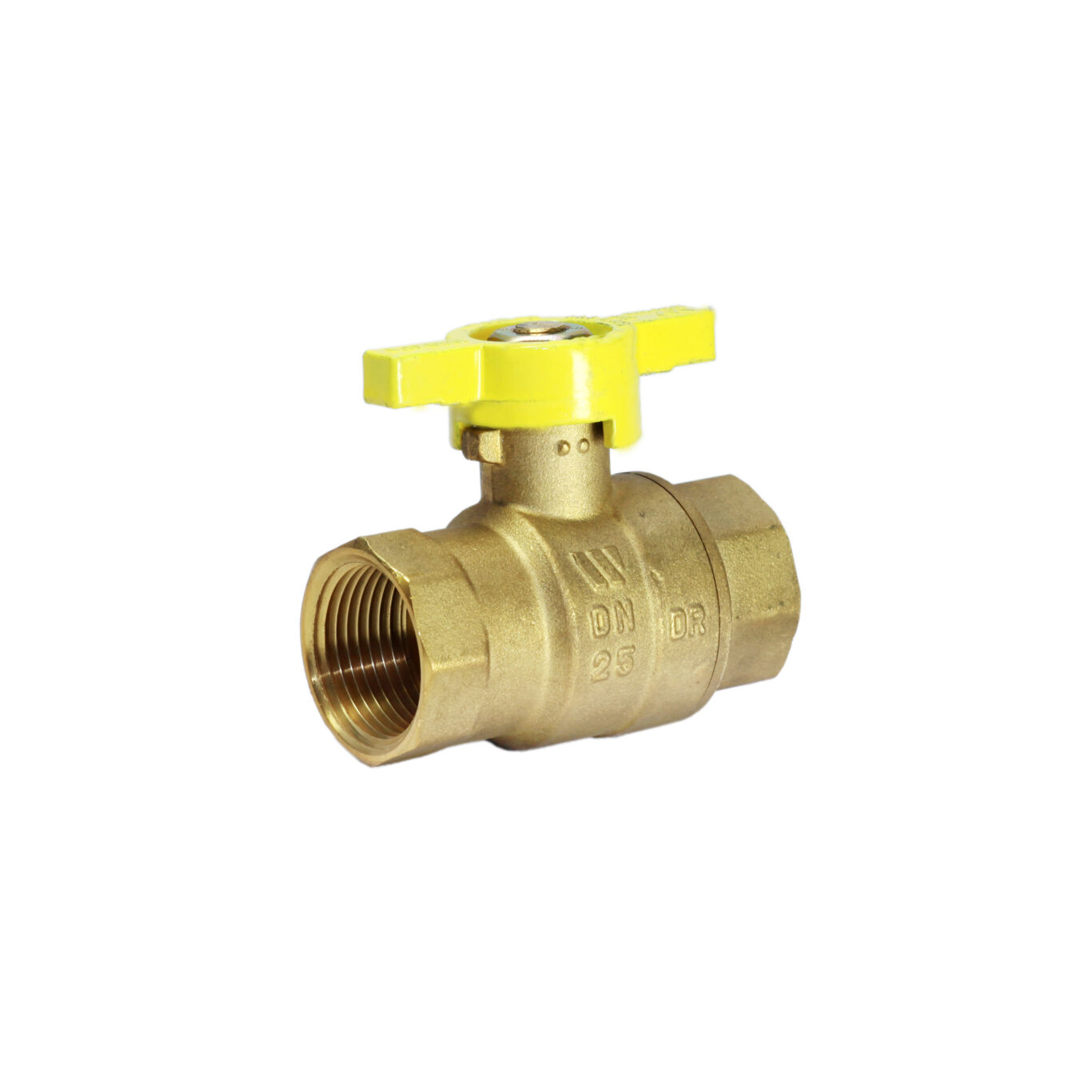

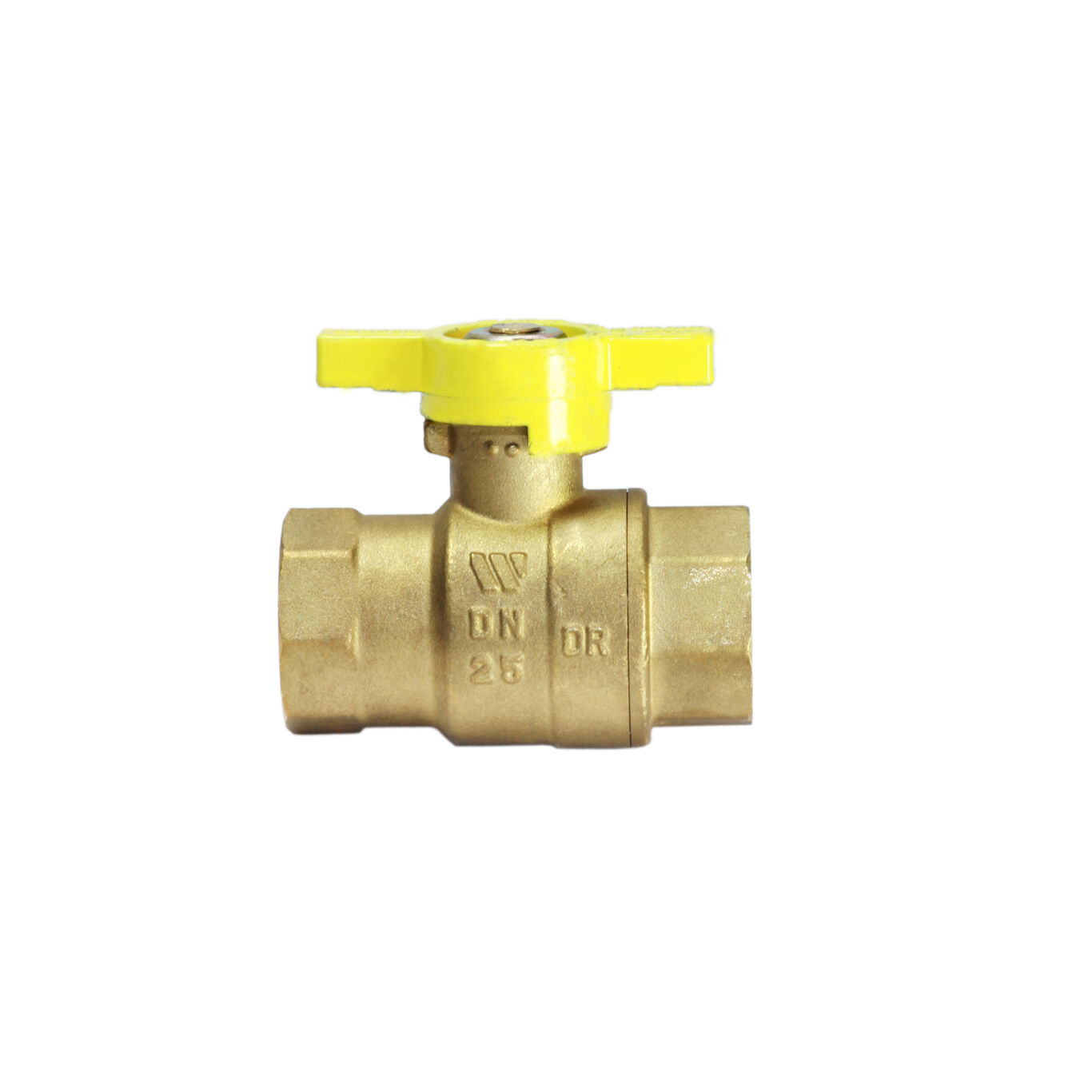

FBV-3C-AUS-TH
2-Piece, Full Port, Brass Ball Valve, 15mm-50mm, 1/2-2 IN, Threaded Connections and Tee Handle
Series FBV-3C-AUS-TH Full Port, Brass Ball Valves are used in building services, municipal waterworks and light industrial applications for a full range of liquids and gases. The FBV-3C-AUS-TH ball valve is mainly used to cut off or connect medium in the pipe and can also be used for flow adjustment and control. They feature threaded connections, a bottom-loaded blowout proof stem, fluorocarbon elastomeric stem O-ring , virgin PTFE stem packing seal, thrust washer, and seats, machined chrome plated brass ball, brass adapter, and tee handle. Pressure ratings for 15-25mm (1/2-1 IN) sizes are 41bar (600psi) WOG, Non-shock; 10.3bar (150 psi) WSP. Temperature range is -40°C to 204°C.
- Fluorocarbon elastomeric stem O-ring prevents stem leaks
- Gas Mark approved threaded valves, 1/2-1 inch
- Watermark approved threaded valves, 1/2-1 inch
- Adjustable stem packing gland
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FBV-3C-AUS-TH
