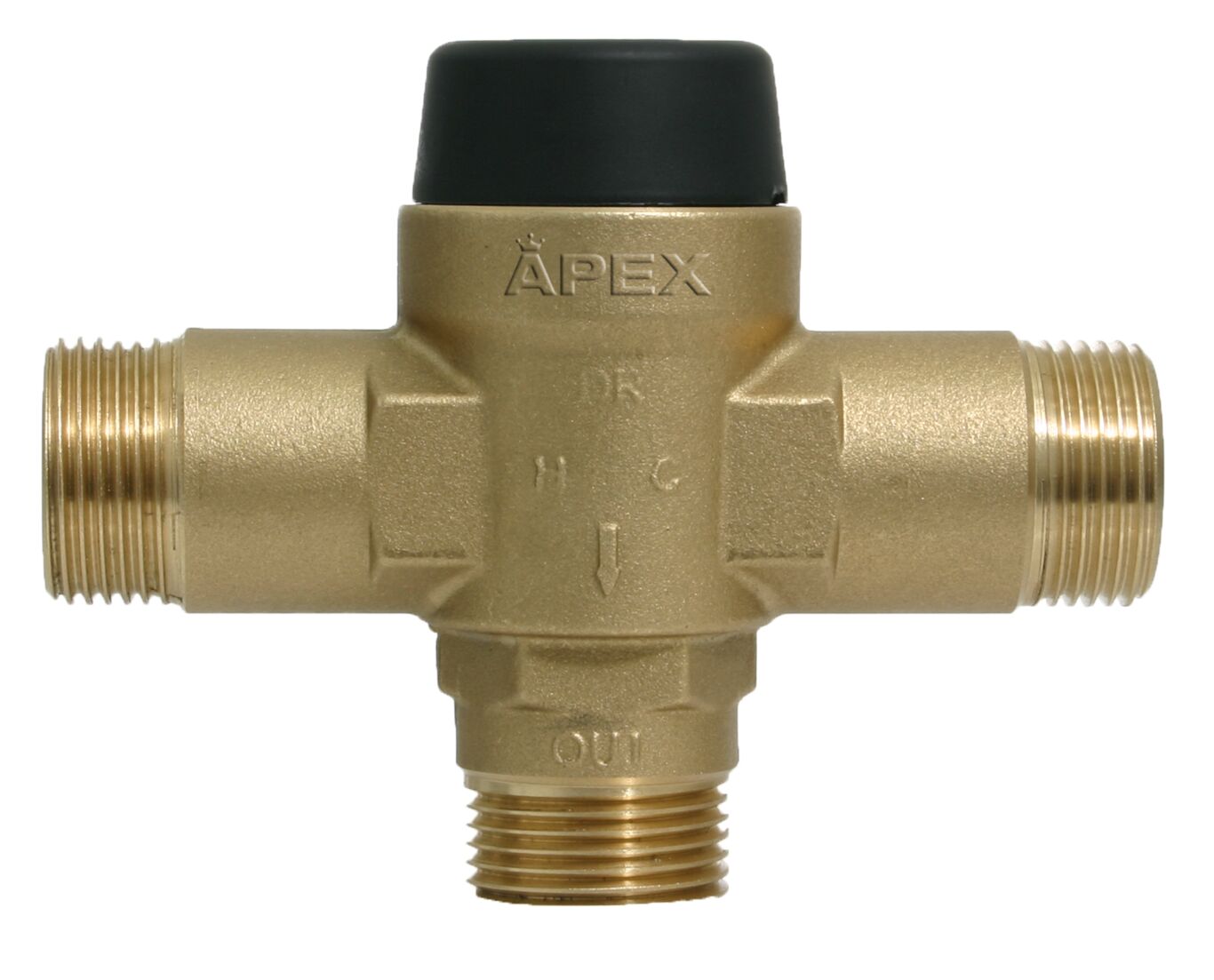

TV25
×
![]()
Tempering Valve, 25mm, 1 BSP Male Connections
Series TV25 is designed for extremely high flow rates of up to 90 litres per minute. These corrosion resistant valves are suitable for low pressure systems e.g. header tanks, open vented and low head systems. Also suitable for high demand mains pressure systems. Valves have a forged, high quality, DR brass body. Integral hot and cold non-return valves are ideal for ring main installations. Inlet water pressure from 20 to 1600 kPa. Flow Rate for TV25 models are 25 L/min at 20 kPa inlet pressure. Outlet temperature adjustable from 35°C to 60°C.
- Machined, assembled and 100% tested in NZ.
- Intergral non-returns mean valve is deal in ring main installations.
- Extremely high flow rates - up to 90 litres a minute.
- Forged, high quality, corrosion resistant DR brass body.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TV25
