FBV-3C-AUS
×
![]()
Full Port Brass Ball Valves, DN15-DN80, PN41

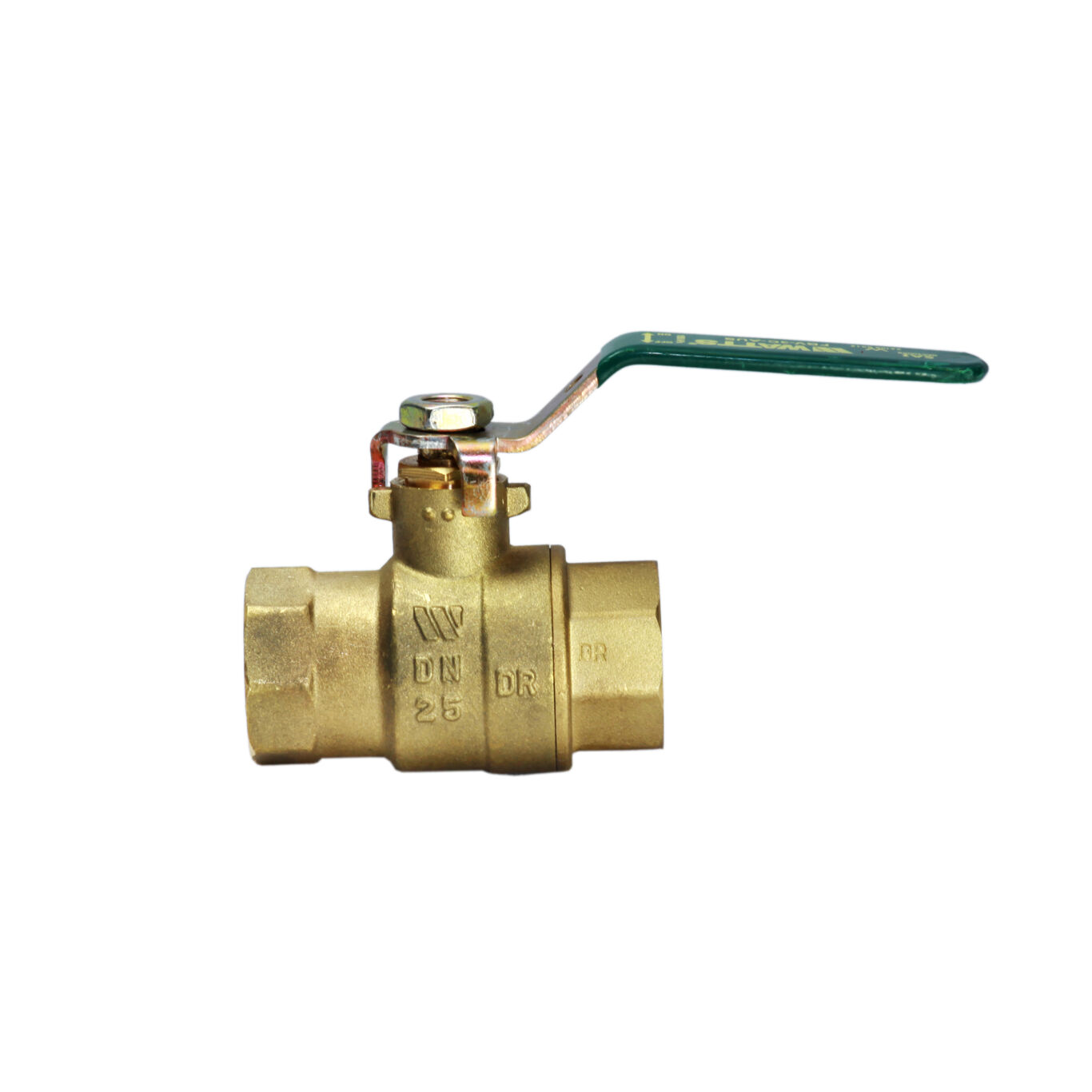

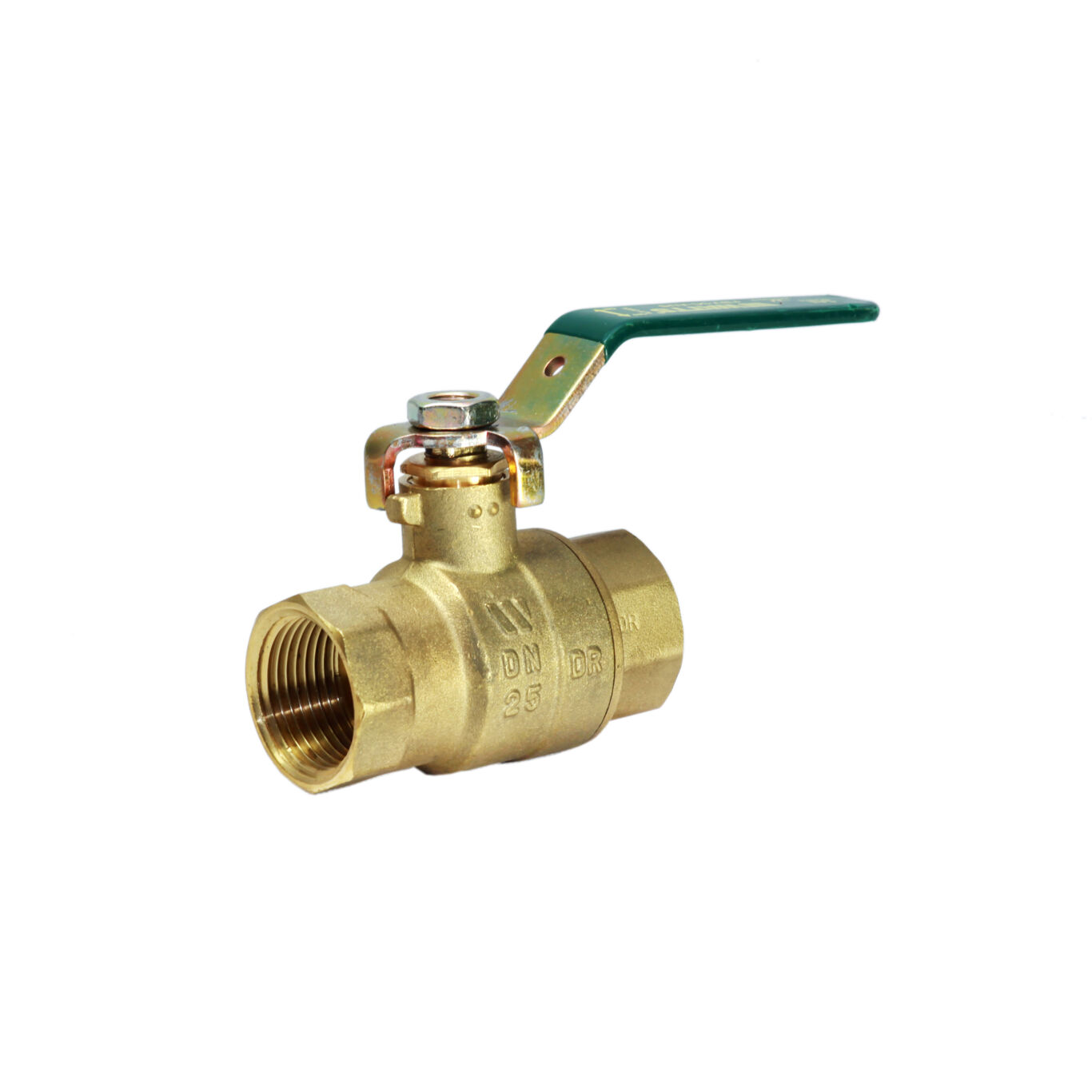

Series FBV-3C-AUS, 2-piece, full port, brass ball valves are used in commercial and industrial applications for a full range of liquids. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle.
- PTFE stem packing seal, thrust washer, and seats
- Bottom loaded blowout proof stem
- Adjustable stem packing gland
- Machined chrome plated brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Watermark approved threaded valves 1⁄2" – 3" (15 – 80mm)
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FBV-3C-AUS
