LV-40/50
×
![]()

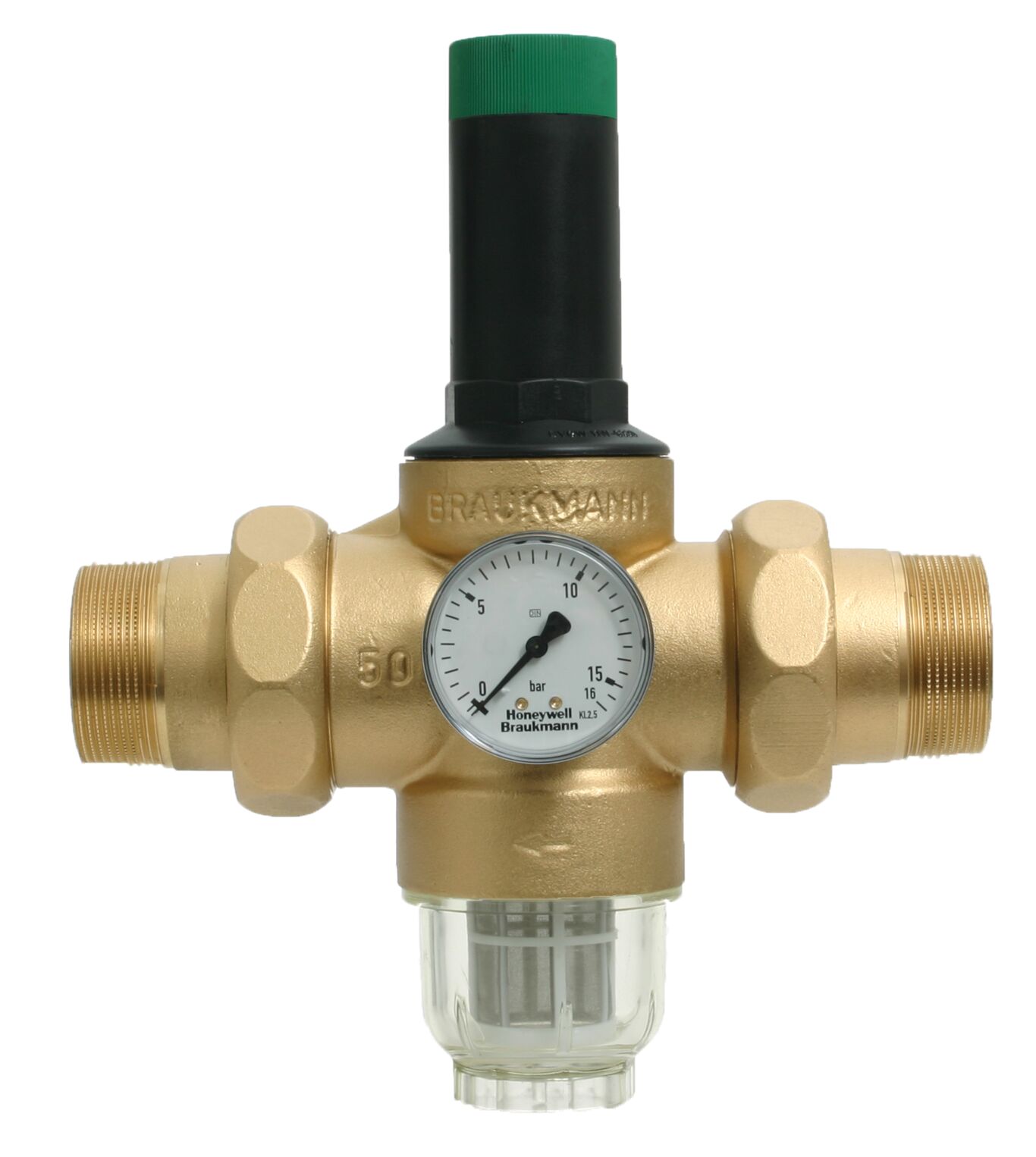

Honeywell Braukman Pressure Limiting Valve, 40mm-50mm
Series LV-40/50 Honeywell Braukman Pressure Limiting Valve is designed for high pressure systems. Can be used for water, other non-aggressive liquids, compressed air and for Nitrogen. Valve size 40mm has 11/2 BSP union inlet and outlet connections. Valve size 50mm has 2 in BSP union inlet and outlet connections. Outlet pressure set at 400kPa, but is adjustable from 150 - 600kPa. Hot water conversion available to maximum 70°C.
- High quality synthetic valve seat - not sensitive to scaling
- Pressures easily adjusted by simply loosening screw and turning knob
- Corrosion resistant DR (dezincification resistant) Brass with spring located outside the flow
- Integral filter and optimized flow path around the valve seat - valve is not sensitive to debris
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LV-40/50
