Combi Packs
×
![]()
Combi Valve Packs
Apex Series Combi Packs include a combination of valves used for high (mains) pressure hot water and solar systems. Combi pack offers the complete valve solution. Complies with NZBC Clause G12 (2001). Complies with NZS 4617 (1989).

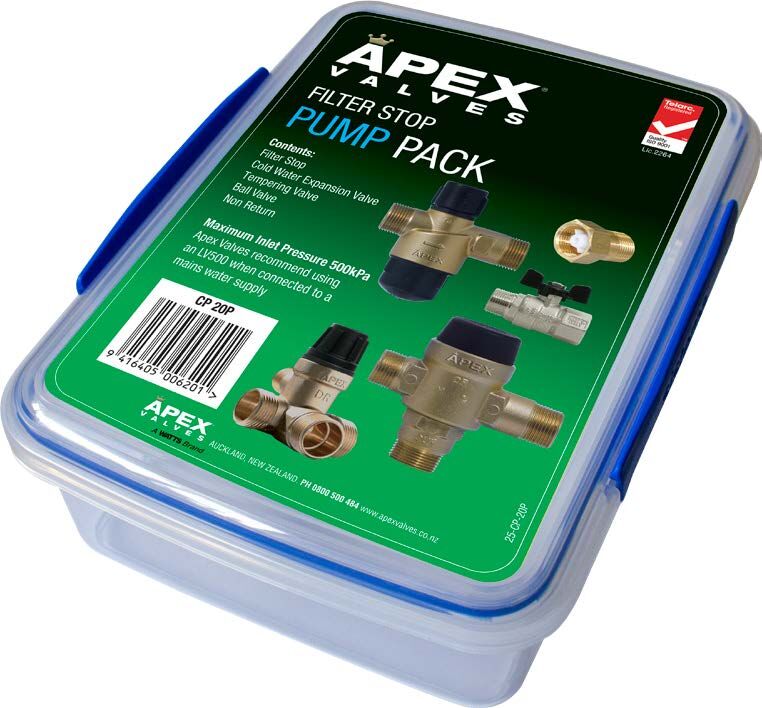

- CP20P Pump Pack includes: Filterstop (FS20), Cold Water Expansion Valve (EVT 700), Tempering Valve (TV20), 1 x MF Ball Valve 20mm, Non-Return 20mm (NR) and Socket.
- CP20M Manifold Pack includes: Pressure Limiting Valve (LVT20 500), Cold Water Expansion Valve (EVT 700), Tempering Valve (TV20), 1 x MM Ball Valve 20mm, 1 x MF Ball Valve 20mm, Non-Return 20mm (NR), 100mm Cross Connector, Cap and Socket.

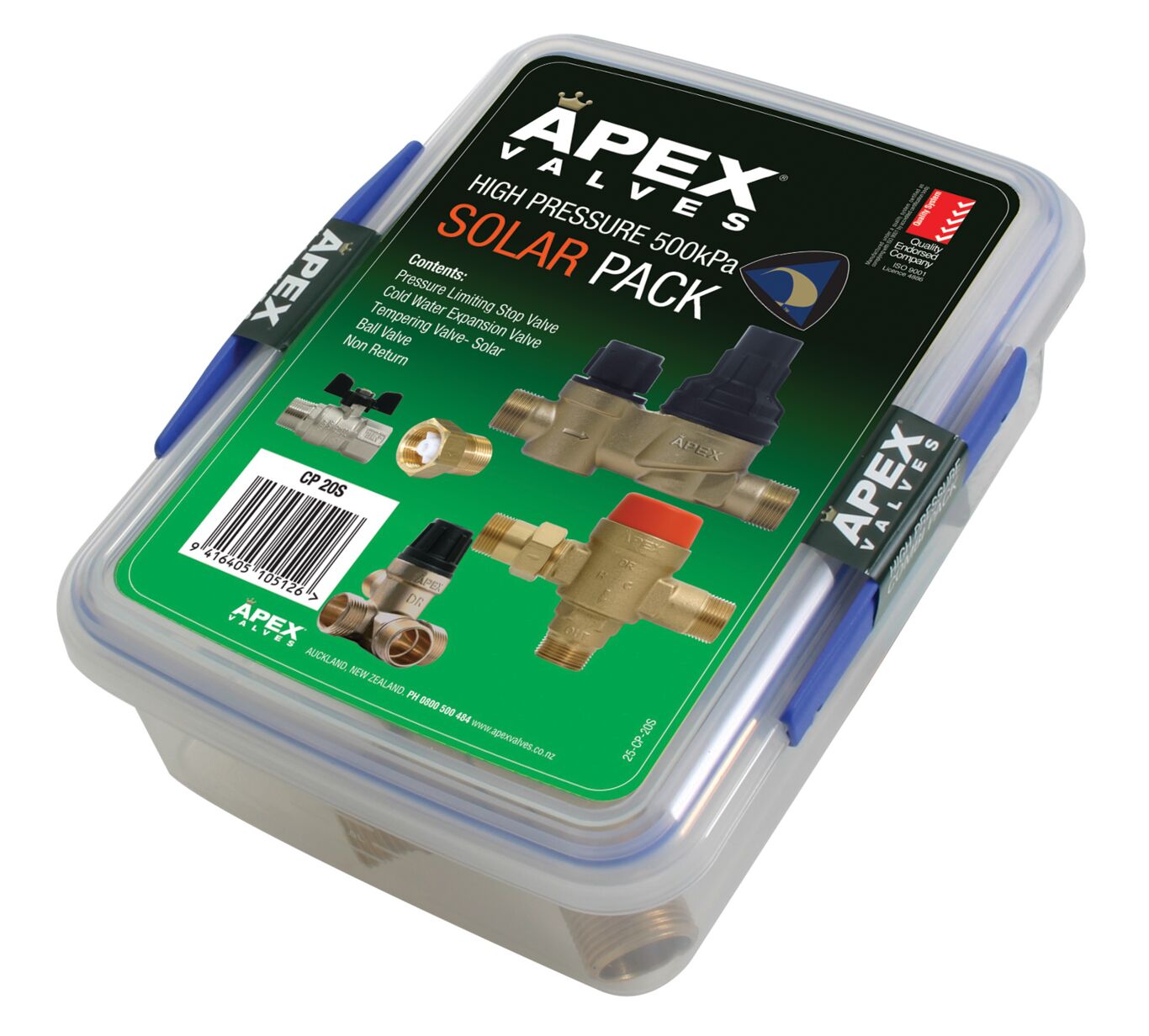

- CP20S Solar Pack includes: Pressure Limiting Stop Valve (LSV20 500), Cold Water Expansion Valve (EVT 700), Solar Tempering Valve (TV20S), 1 x MF Ball Valve 20mm, Non-Return 20mm (NR), and Socket.

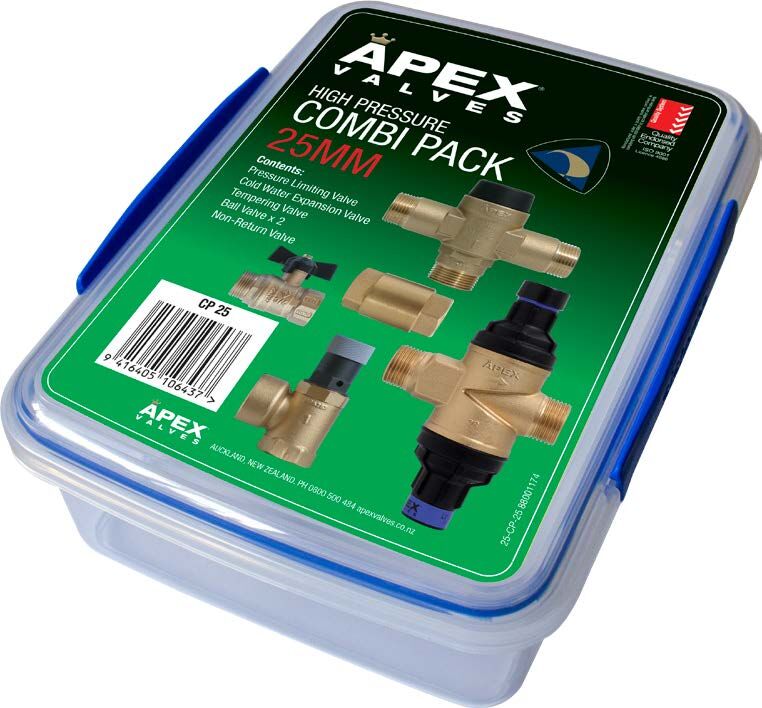

- CP25 includes: Pressure Limiting Valve (LV25 500), Cold Water Expansion Valve Honeywell (EV25 800), Tempering Valve (TV25), 2 x MF Ball Valves (BV 25mm), Non-Return 25mm (NR 25).
- CP20T includes: Pressure Limiting Valve with take-off (LVT20 500), Cold Water Expansion Valve (EVT 700), Tempering Valve (TV20), 1 x MM Ball Valve 20mm, 1 x MF Ball Valve 20mm, Non-Return 20mm (NR), Cap and Socket

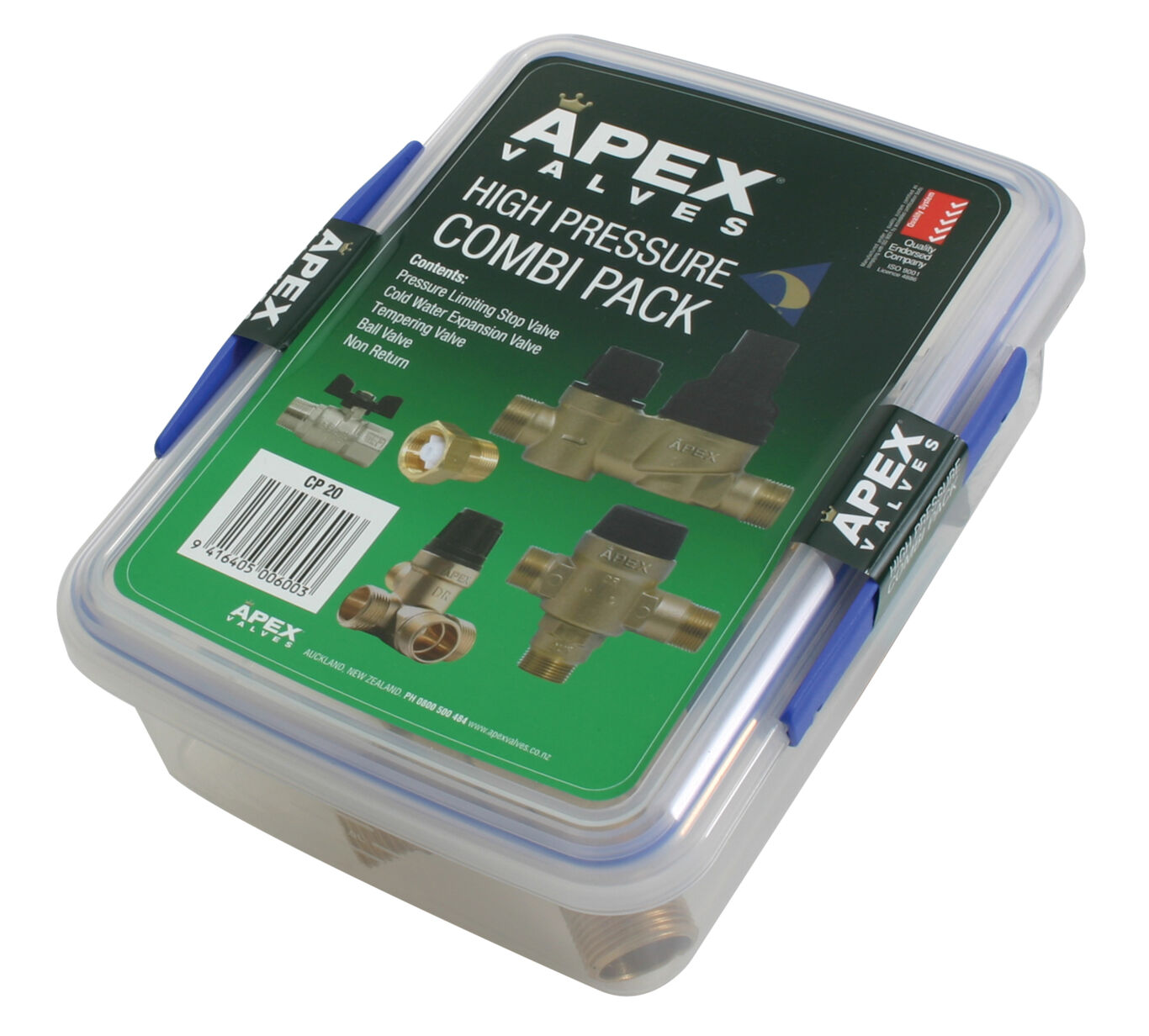

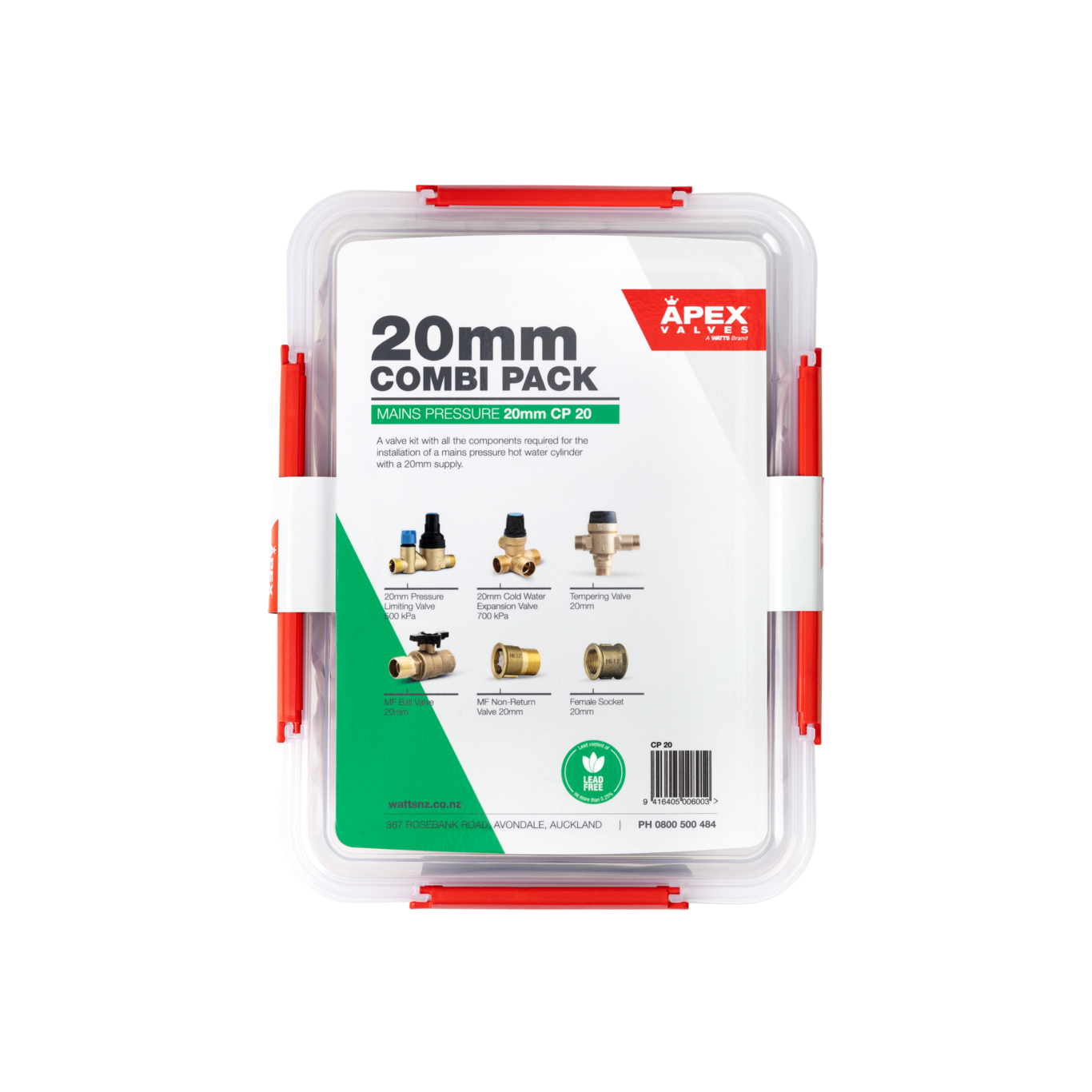

- CP20 includes: Pressure Limiting Stop Valve (LSV20 500), Cold Water Expansion Valve (EVT 700), Tempering Valve (TV 20), 1 x MF Ball valve 20mm, Non-Return 20mm (NR), and Socket
- CP20G includes: Pressure Limiting Stop Valve 20mm (LSV20-500), 20mm Ball Valve - Blue Handle for Water, 20mm Ball Valve - Yellow Handle for Gas, PLUS 1 x MF 20mm, 1 x 20mm Fibre Washer (Gas) and 1 x 20mm Rubber Washer (Water)
- CP15 includes: Pressure Limiting Valve with take off (LVT15 500), Cold Water Expansion Valve (EVT 700), Tempering Valve (TV 20), 1 x MF Ball Valve 15mm, 1 x MF Ball Valve 20mm, Non-Return 20mm (NR), Cap and Socket
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Combi Packs
