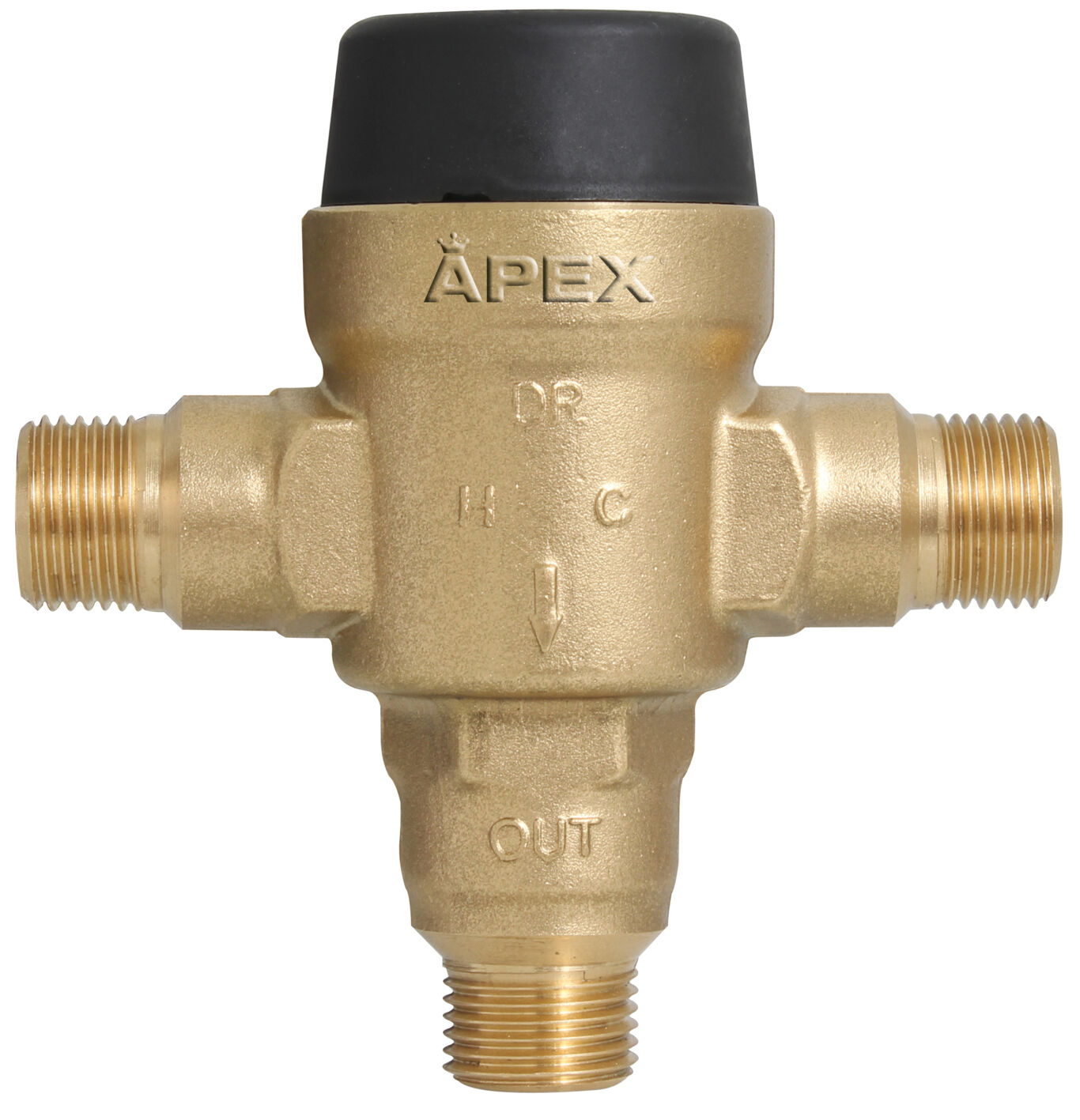

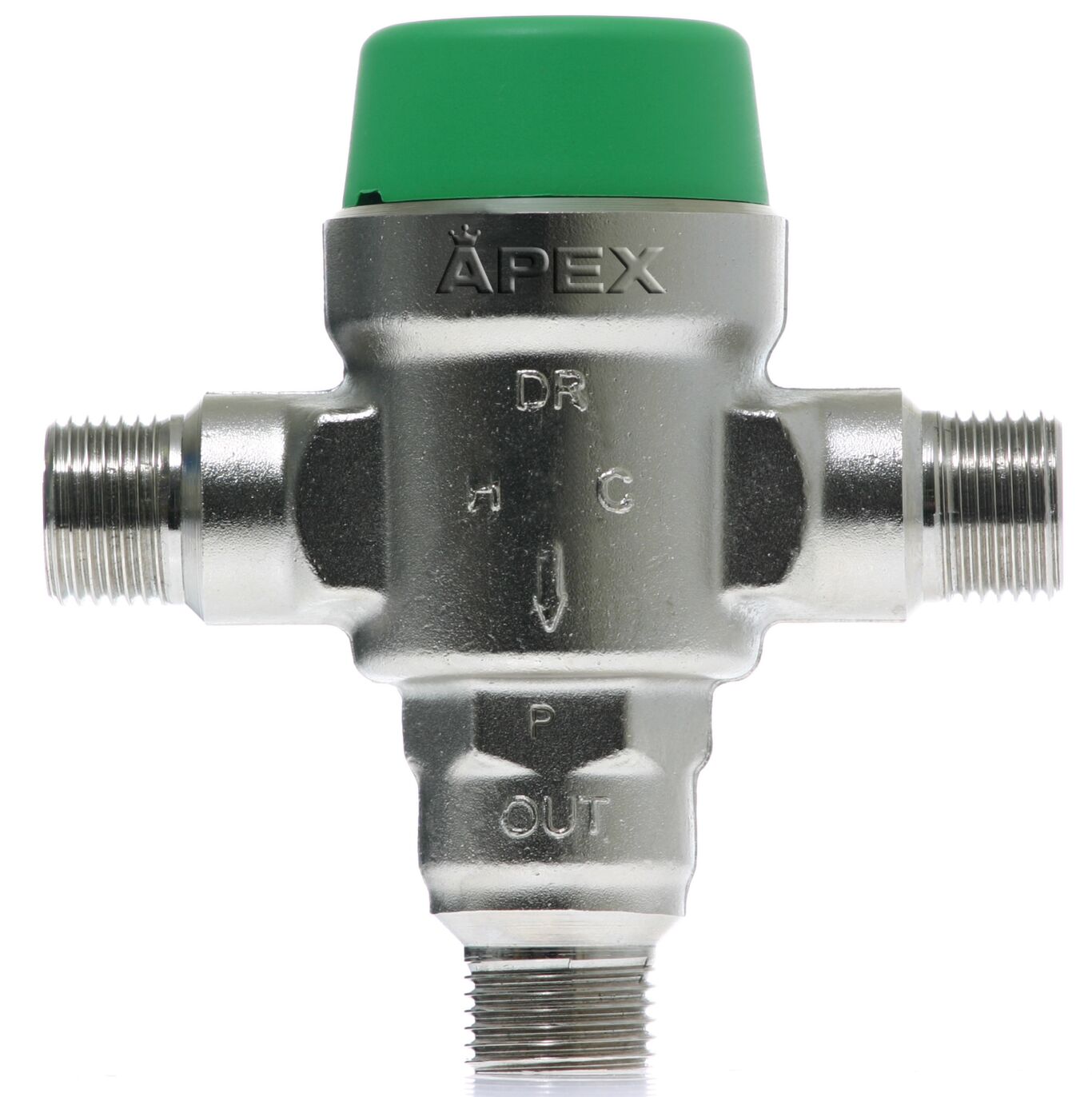

TV15/TV15P
Tempering Valve, 15mm, 1/2inch BSP Male Connections
Series TV15/TV15P Tempering Valve is suitable for use in high (mains) and low pressure hot water supply systems to mix hot and cold water to a controlled outlet temperature, reducing the risk of exposure to excessively hot water. Valve has a forged, high quality, corrosion resistant DR brass body. Inlet Pressure are 30 to 1000 kPa (3m head). Flow Rates for model TV15 is 20 L/min at 30 kPa inlet pressure and model TV15P is 9 L/min at 30 kPa inlet pressure. Factory set to give 50°C at outlet but can be adjusted from 35°C to 60°C. Maximum inlet temperature is 99°C. Model TV15 are non-return on both inlets.
- Advanced temperature control - ideal for direct connection to a sanitary fixture (TV15P)
- Failsafe shutdown - in the event of failure of hot and cold supplies
- Valve can be installed in any orientation
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TV15/TV15P
